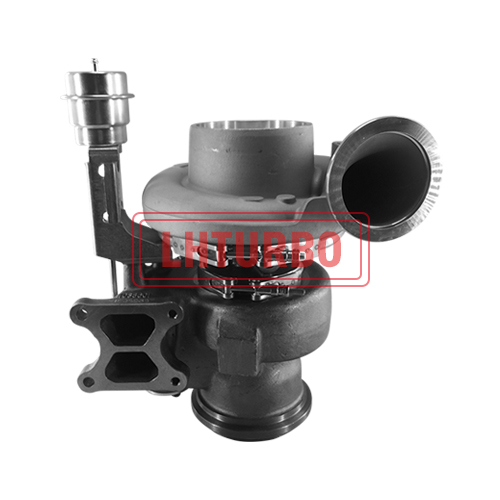

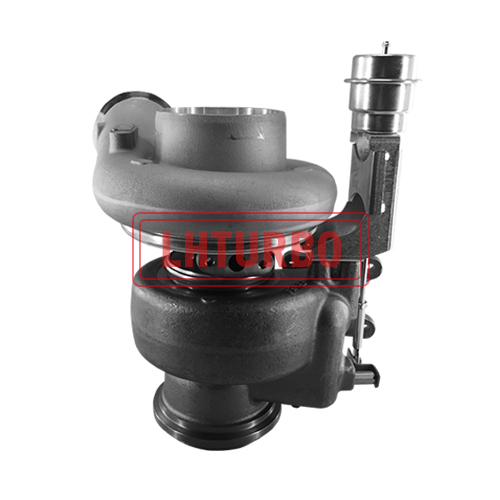

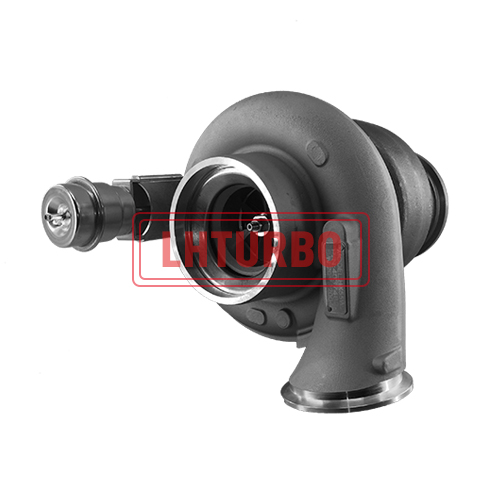

HX55W 4046127 4090042 4046131 4046132 Cummins ISX2 AM Turbo Turbocharger
Product DescriptionSKU# PJ2005
Engine: Cummins ISX2, ISX Signature 600
Turbo Model: HX55W
Reference Part Number: 4046127, 4090042, 4040844, 4040845, 4040846, etc.
No core charge, Brand New.
Product Specification:
| Part Number | 4046127 |
| Previous Version | 4040844, 4040845, 4040846 |
| OE number | 4090042, 4036758 |
| Description | Various Cummins Dennis Coach, Cummins ISX2 Signature 600 |
| Manufacturer Part Number | 4046131, 4046132 |
| CHRA | 4027807 |
| Turbo Model | HX55W |
| Engine | ISX2 |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α (compressor housing) | 270 |
| Angle β (turbine housing) | 160 |
| Bearing Housing | 4027776 |
| Turbine Wheel | 3539512 |
| Comp. Wheel | 4036317 (4035887)(Ind. 71. mm, Exd. 99.01 mm, Trm BCCW, 6+6 Blades) |
| Back plate | 3528096 (1153055300) |
| Heat shield Number | 3529846/3533038 |
| Repair Kit | 3580762/3575181 (358076200, 357518100)(1153055750) |

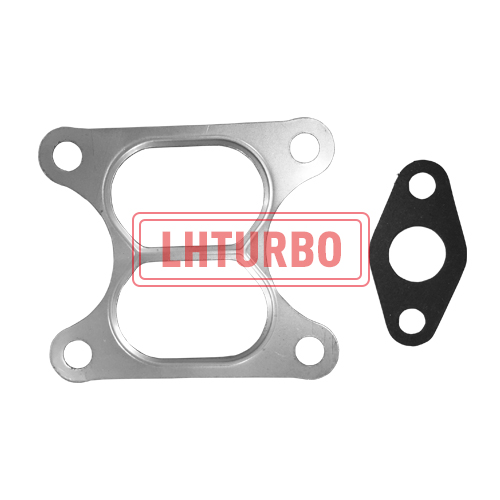

| Gasket Kit | 4026884 |
| Part Number | 4046127 |
| Previous Version | 4040844, 4040845, 4040846 |
Applications
2006-10 Cummins Dennis Coach, Signature 600, Various with ISX2 Engine
