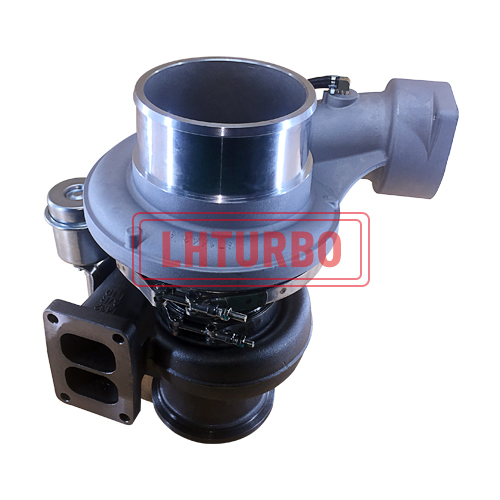

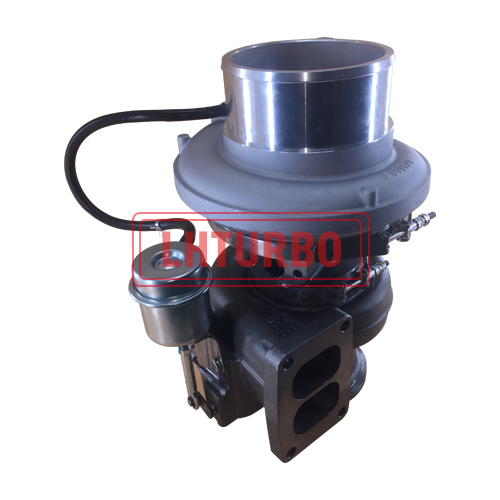

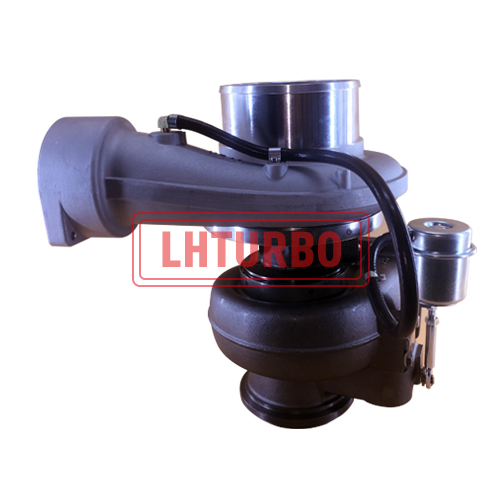

1994-07 Caterpillar Truck S410G Turbo 177148
Product DescriptionSKU# PJ2004
Engine: 3406E, 3406C, C16
Horsepower: 14.64L
Wastegate/Actuator: Yes
Reference Part Numbers: 177148, 0R7152, 0R7923, 0R7310, 0R6989, 0R7203, 0R7223, 0R6986, 0R7201, 0R7299,
Other part numbers: 166-6752, 141-8937, 124-3032, 136-6390, 146-4328, 141-8939, 124-3035, 167-9271, 196-5951,etc.
Product Description
| Part Number | 177148 |
| Previous Version | 169227, 170354, 704604-0007, 466445-0018, 466445-0023, 466445-9023, 471142-0005, 471142-9005, 471142-0003, 466445-0015, 466445-0021, 466445-9021, 471142-5005 |
| OE number | 0R7152, 0R7923, 0R7310, 0R6989, 0R7203, 0R7223, 0R6986, 0R7201, 0R7299, 166-6752, 141-8937, 124-3032, 136-6390, 146-4328, 141-8939, 124-3035, 167-9271, 196-5951, 137-4832 |
| Description | Tractor, Truck |
| CHRA | 174248,161-6780, 10R-0510, 0R7287, |
| Turbo Model | S410G, GTA470201BS, GT4702, BTG7513, GT500201BS |
| Engine | 3406E, 3406C, C16 |
| Displacement | 14.64L, 14640 ccm |
| S/N | OKC150148 |
| RPM | 1800 |
| KW | 317/404/550/355/475 HP |
| Fuel | Diesel |
| Bearing Housing | 451358-0004 |
| Turbine Wheel | 702892-0001 |
| Comp. Wheel | 451936-0001 |
| Back plate | 451444-0002 |
| Heat shield Number | 707967-0002 |
| Repair Kit | 176392 |
| Turbine Housing | 702908-0003 |
| Compressor Cover | 447992-0027/704569-0003 |
| Turbine housing + Actuator | 447990-0099 |
| Actuator | 446131-0046 |
| Gasket oil inlet | 210019 (129119) |
| Gasket (oil outlet) | 210018 (129120) |
| Replaced By | 704604-0007 (0R7310, 1679271, 167-9271, 704604-5011 (1965951. 196-5951, 160-6201)) |
Product Applications:
1994-07 Caterpillar Engine Truck 3406E, 3406C, C16 Engine
Packing way (shipping info)
G.W.: 70lbs
BOX SIZE: 14.5*13.7*16.5in
