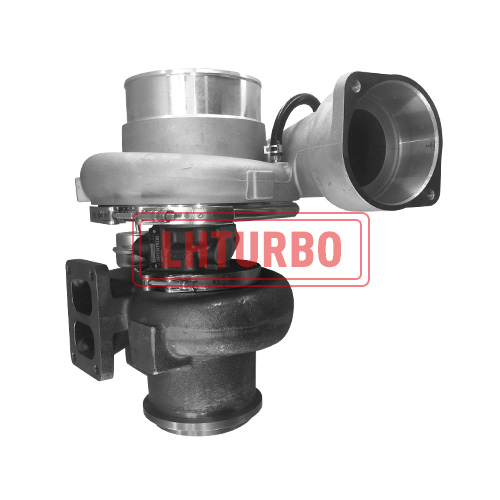

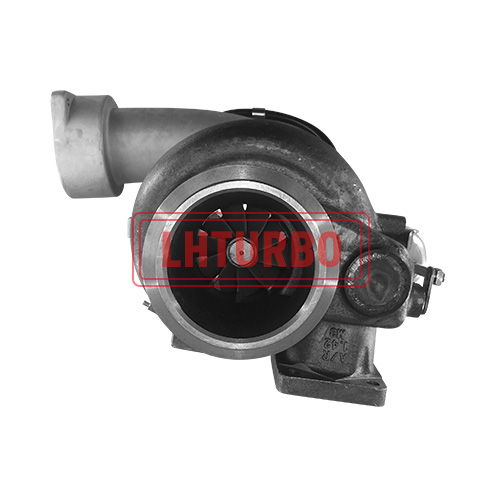

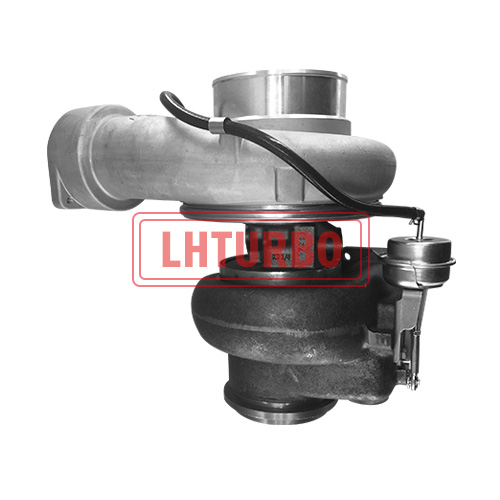

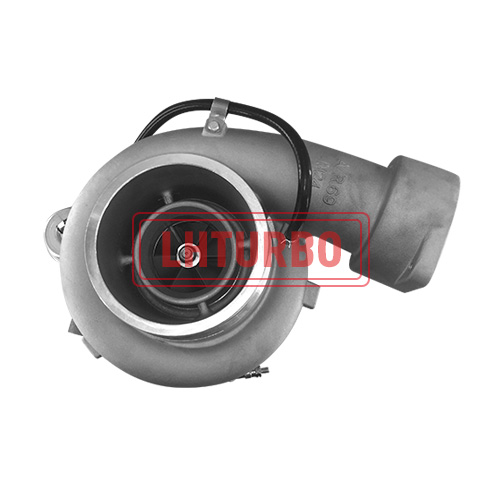

CAT 3406E Turbocharger Caterpillar C15 Turbo Bigger A/R
Product DescriptionSKU# PJ2011
Engine Fit: Caterpillar 3406E/3406C C15 Engine, GT47
Horsepower : 550HP+(Bigger Compressor Housing, bigger horsepower)
Turbo Compressor A/R: .69
Wastegate/Actuator: YES
Reference Part number: 0R7285,0R7275,0R7203,0R7299,0R7924,0R7223,196-5952,etc.
| Part Number | 175963 |
| OE number | 0R-7285, 161-6352, 0R-7924, 196-5952, 0R7924, 0R7275, 0R7285, OR7285, OR7924, OR7275 |
| Description | Tractor, Truck |
| CHRA | 175964 (161-6825, 0R7286, 451686-0019) $1356.08 |
| Turbo Model | S410G-105H55SAWM/1.65TM1, GT5008, GT5008BS |
| Engine | 3406E, 3456, C16 |
| Displacement | 15.8L, 15800 ccm |
| Engine Speed | 2100 |
| Fuel | Diesel |
| Equip | 705152-0003, 705152-0007 |
| Power | 441/600 HP |
| RPM Max | 2100 |
| Angle α (compressor housing) | 0 |
| Angle β (turbine housing) | 0 |
| Turbine Housing | 171698 |
| Compressor Cover | 175958 |
| NOTE |
Product Applications
1998-01 Caterpillar Engine Truck 3406E/3456/C16 Engine
Packing way (shipping info)
G.W.: 70lbs
BOX SIZE: 14.5*13.7*16.5in
