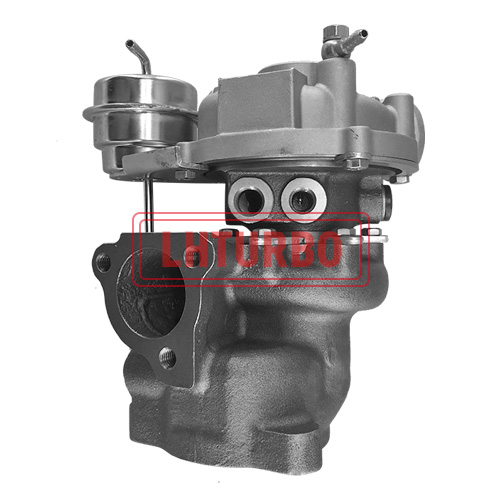

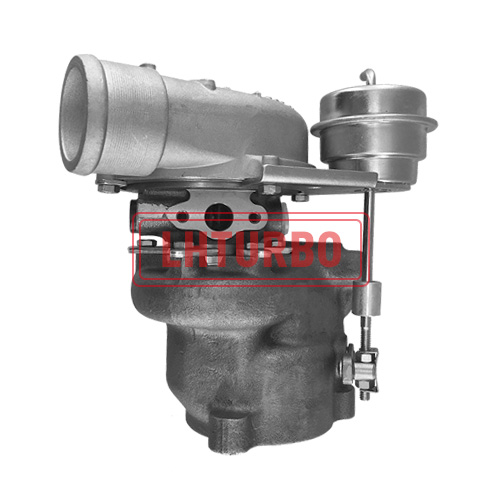

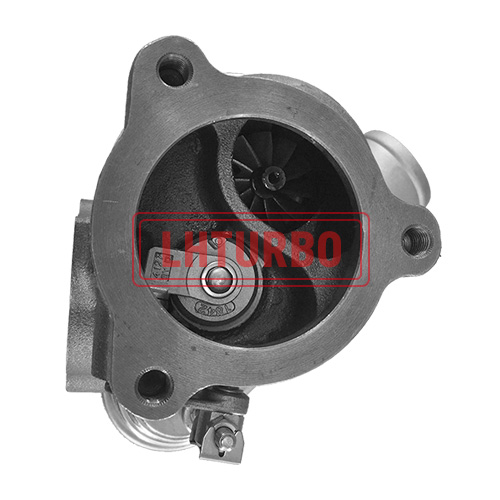

TURBO 53039880029 FOR VW PASSAT AUDI A4 1.8L
Product DescriptionSKU# PJ2036
INTERCHANGES WITH THE FOLLOWING PART NUMBERS:
40-80101 IK , 058 145 757A , 058145757A , 058 145 757C , 058145757C , 8D0 253 115 , 8D0253115 , 06A 253 039E , 06A253039E , 058 145 703 J , 058 145 703J , 058 145 703L , 058145703C , 058145703E , 058145703H , 058145703J , 058145703L , 058145703LX , 058145703NT , 058145703NX , 06A145704LX. , 5303 988 0029 , 53039880005 , 53039880029 , 5304988001
| Part Number | 53039880029 |
| Previous Version | 5303-988-0029, 5303 988 0029 |
| OE number | 058145703J, 058145703JX, 058145703JV, 058145703N |
| Year | 2000-05 |
| Description | Audi, Volkswagen |
| Manufacturer Part Number | 53039700029, 5303-970-0029, 5303 970 0029 |
| CHRA | 53037100511 (5303-710-0511) $295.00 Brand New made in USA |
| Turbo Model | K03-2072GAA5.88KCAXK, k03-005 |
| Engine Model | 1.8-5V longs, along |
| Displacement | 1.8L, 1781 ccm, 4 Cylinders |
| KW | 110 |
| RPM Max | 5500 |
| Fuel | Gasoline |
| Angle a (compressor housing) | 160 |
| Angle (turbine housing) | 150 |
| Bearing housing | 53041500006/53041500017 |
| Turbine Wheel | 53031205023/53031205037 |
| Comp. Wheel | 53041232018/53041232007 |
| Back plate | 53041515702 |
| Heat Shield | 53031652000 |
| Repair Kit | 53037110000 $69.00 |
| Turbine Housing | 53031009060 |
| Compressor Cover | 53041015003 |
| Actuator | 58251104075 |
| Turbine Housing AR | 5 |
| Settings Waste gate (pressure) | 0.370 bar |
| Settings Waste gate (lifting rod) | 4.00 mm |

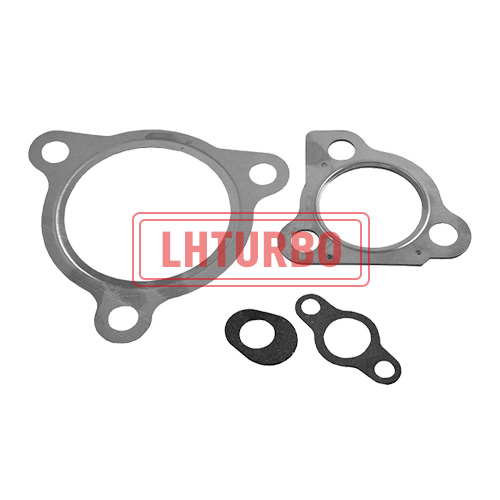

| Gasket (turbine inlet) | 210337 |
| Gasket (turbine outlet) | 210242 |
| Gasket (oil outlet) | 210317 |
Applications
1998-99 Audi A4 1.8T (B5) Engine Code APU, ARK
2002-05 Audi A4 1.8T (B6) Engine Code BFB
1998- Audi A6 1.8T (C5) Engine Code APU, ARK
1996-00 Volkswagen Passat B5 1.8T Engine Code APU, ARK
2000-05 Audi A4 with AMG, AWM, ATW, AUG Engine
2000-05 Volkswagen Passat with AMG, AWM, ATW, AUG Engine
Packing way (shipping info)
5.5KGS 12 LBS
22*22*22 8.7*8.7*8.7
