Turbo 3536305 for 1995- J.I. Case with 6CTA Engine
Product DescriptionSKU# PJ2024
HOLSET Turbo#: 3536305
Engine Manufacturer: Cummins
O.E.M.#: 3802705
Turbo Model: HX40W
Engine Type: Cummins 6CTA
Product Specification:
| Part Number | 3536305 |
| Previous Part Number | 3536304 |
| OE number | 3802705 |
| Year | 1995-05 |
| Description | Cummins, JI Case Industrial Engine |
| Manufacturer Part Number | 3536306, 353607 |
| CHRA | 4027612 (3535324) |
| Turbo Model | HX40W-L8284T/JB19CC, HX40W |
| Engine | 6CTA |
| Engine Manufacturer | Cummins - JI Case |
| Angle α (compressor housing) | 340 |
| Angle β (turbine housing) | 20 |
| Bearing Housing | 3532632 |
| Turbine Wheel | 3522879/3535359 |
| Comp. Wheel | 3599592 |
| Back plate | 3530923 |
| Heat shield Number | 3519302 |
| Repair Kit | 3575169 |
| Repair Kit | 3575169 |

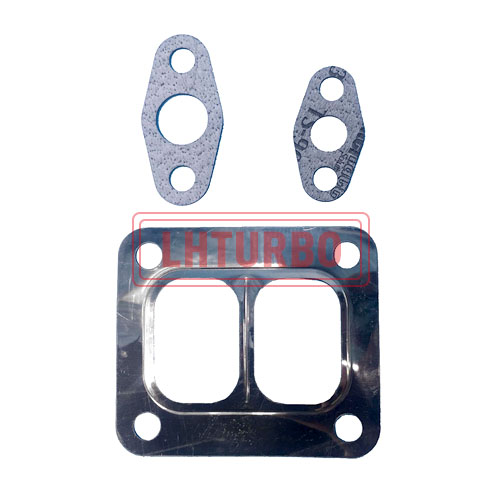

| Gasket (turbine inlet) | 407294-0001 (312617) |
| Gasket (oil outlet) | 210060 (2475013) |
Product Applications
1995-05 Cummins, JI Case Industrial Engine with 6CTA Engine
Packing way (shipping info)
G.W.: 33lbs
BOX SIZE: 12*9.5*12in
