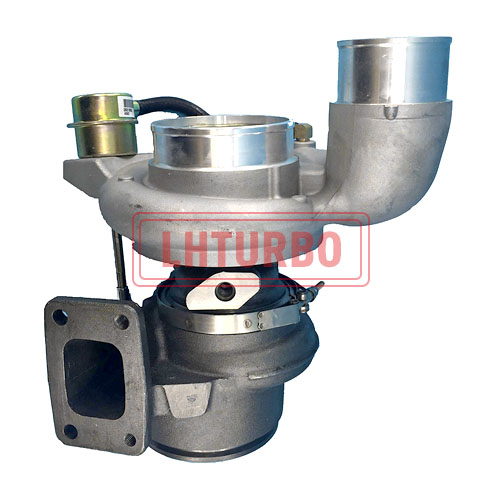

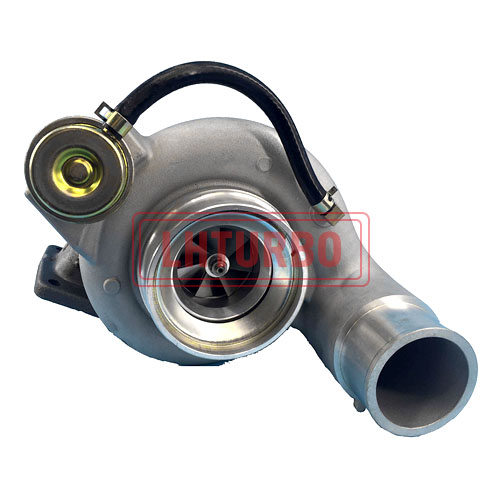

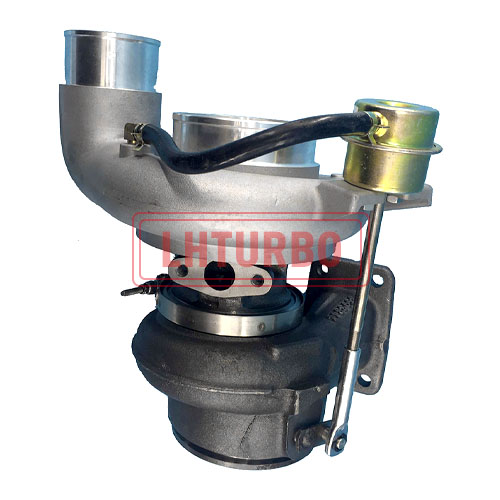

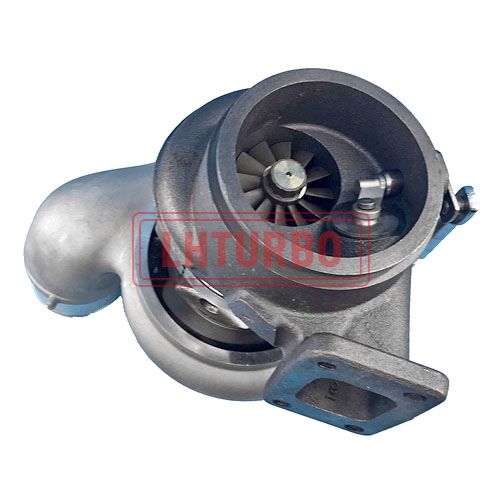

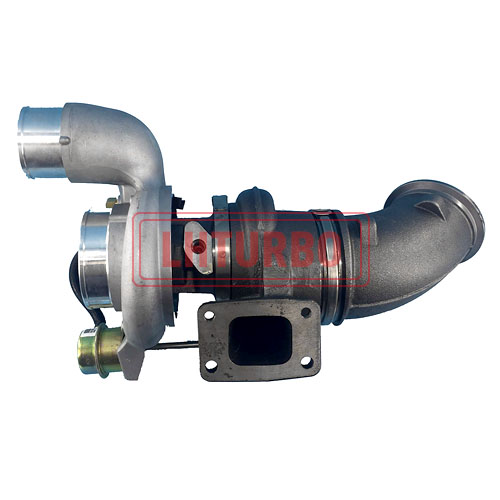

Cummins HY35W 3599811 Turbo For Dodge Ram 2500 3500 2003-2007
Product DescriptionSKU# PJ2023
Engine: Cummins ISB, HY35
Exhaust Flange: Standard T3
Exhaust Downpipe/Outlet: 4.375" O.D. V-band
Compressor Outlet: please reference with the pictures
Reference Part Number: 3599811, 3599810, 4089392, 4035044, 4955452 etc.
Before 2004 Dodge Cummins Truck with ISB Engine
Dodge Cummins Truck Automatic, Manual
Product Specification:
| Part Number | 3599811 |
| Previous versions | 3599810, 4089392, 4035044 |
| OE number | 4955452 |
| Description | Dodge Cummins Truck Automatic, Manual |
| CHRA | 4031485 |
| Turbo Model | HY35W-E7765AX/P09TXX35, HY35W |
| Engine | ISB, 6B MY03 |
| Engine Manufacturer | Cummins |
| Angle α (compressor housing) | 225 |
| Angle β (turbine housing) | 165 |
| Bearing Housing | 4031486/4040124 |
| Turbine Wheel | 4035271 (1154351435 |
| Comp. Wheel | 3532309 |
| Back plate | 3530923 (1154351300) |
| Heat shield Number | 3519302 (1152301340) |
| Repair Kit | 4031484 (1154351751) |
| Actuator | 3597785 |
Product Applications
2003-04 Dodge RAM2500 RAM3500 Cummins Truck with ISB Engine
Packing way (shipping info)
G.W.: 25.8lbs &30lbs
BOX SIZE: 19 *11.5*9.5in &11.8*9.5*11.8in
