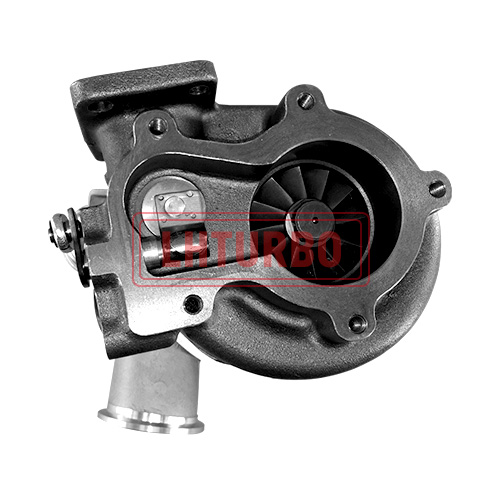

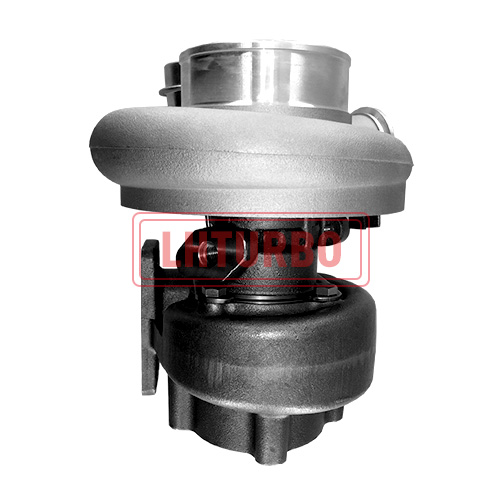

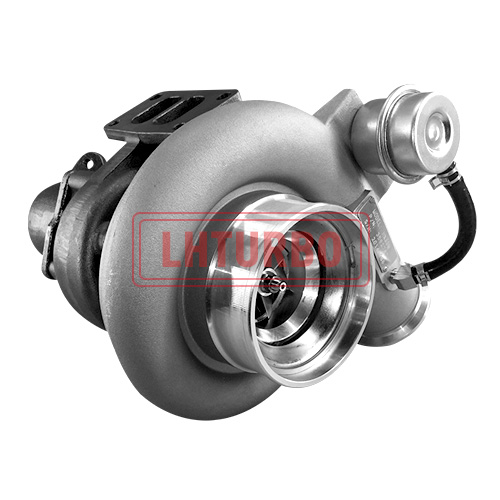

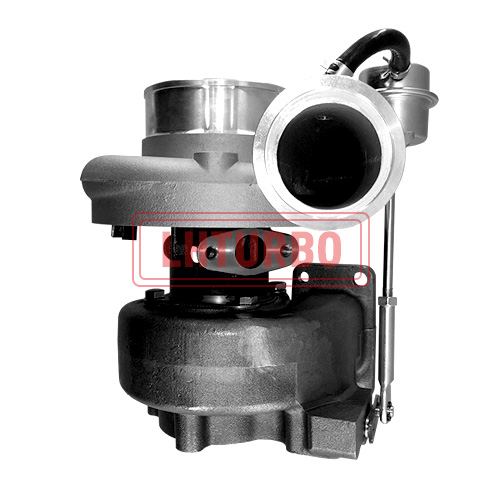

CUMMINS HX35W 3590104Turbo For Dodge Ram 5.9 Turbo 99-02
Product DescriptionSKU# PJ2029
Horsepower: Up to 270hp
Wastegate/Actuator: YES
Flange: Standard T3
Reference Part Number: 3590104, 3590105, 3800397, 3800799, etc.
Product Specification:
| Part Number | 3590104 |
| Previous Part Number | 3590105 |
| OE number | 3800397, 3800799 |
| Year | 1999-00 |
| Description | Dodge Truck 5.9L diesel engines w/ auto trans |
| Manufacturer Part Number | 3590105 |
| CHRA | 4027212 |
| Turbo Model | HX35W-E7755M/J12PY11, HX35W |
| Engine Manufacturer | Cummins |
| Displacement | 5.9L |
| Angle α (compressor housing) | 118 |
| Angle β (turbine housing) | 130 |
| Bearing Housing | 3591575 |
| Turbine Wheel | 3519336 |
| Comp. Wheel | 3599649 |
| Back plate | 3530923 |
| Heat shield Number | 3519302 |
| Repair Kit | 3575169 |
| Turbine Housing | 4030546/3539951 M |
| Compressor Cover | 3591014 |

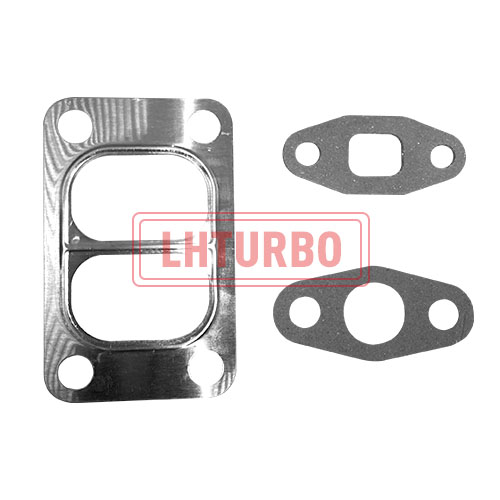

| Gasket (oil outlet) | 210060 (2475013) Gasket Paper |
| Replaced By | 3590105 |
May Interchange with 3592766, 3592767
Applications
1997-0 Dodge Ram 2500, 3500 Truck w/ auto trans.
99-02 Cummins 5.9L Engine 24V, ISB, 6BTA
Packing way (shipping info)
带弯管
49*29*25CM 19 *11.5*10
14.20KG 32LBS
