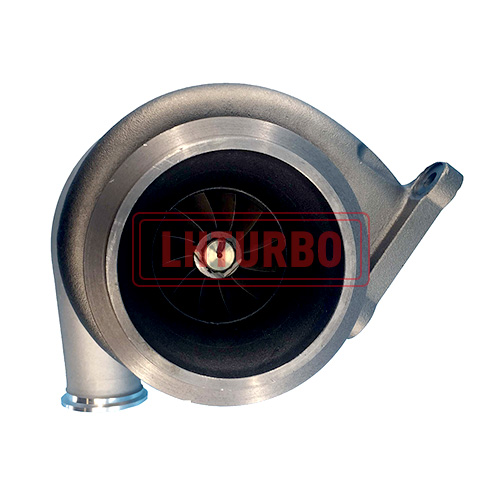

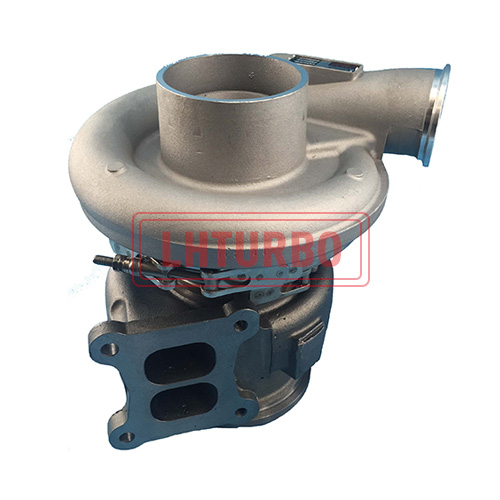

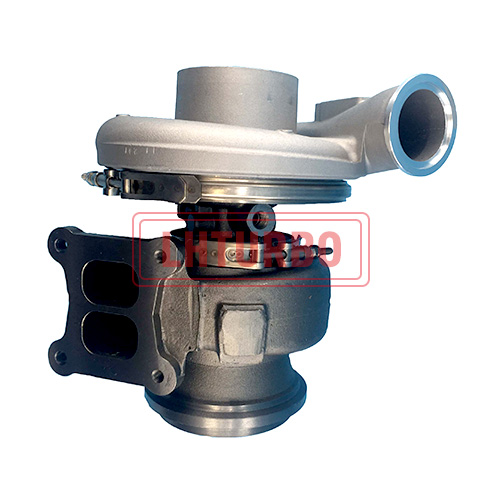

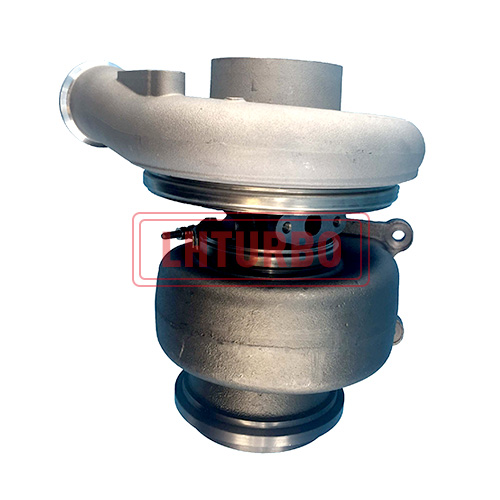

HX55 3590044 Turbo For Cummins ISM ISME M11
Product DescriptionSKU# PJ2022
Engine: Cummins ISM, ISME, M11
Turbo Model: HX55
Waste-gated: No
Reference Part Number: 3590044, 3590045, 3803938, 3536995, 3536996, 3800471, 4039173, etc.
Product Specification:
| Art Number | 3590044 |
| Previous Part Number | 3590045, 3536995, 3536996, 3590044, 4039173, 4046031 |
| OE number | 3800471, 3800471RX, 3803938, 3590045 |
| Year | 1999-09 |
| Description | Truck, Bus, Diamond & Delta Plus Alpha |
| Manufacturer Part Number | 4046031, 2834419, 3590045, 4039173 |
| CHRA | 3580726 |
| Turbo Model | HX55-E9861L/H22E11D, HX55 |
| Engine Manufacturer | Cummins |
| Engine | M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3 |
| Fuel | Diesel |
| Angle α (compressor housing) | 8/153/264/330 |
| Angle β (turbine housing) | 90/92/130 |
| Bearing Housing | 3535704 |
| Turbine Wheel | 3535983 (Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades) |
| Comp. Wheel | 3534329/4041666 (Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades) |
| Back plate | 3528096 (1153055300) |
Product Applications
2007-12 Cummins Truck, Bus with ISM, ISME, M11 Engine
1999-09 Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine
Packing way (shipping info)
G.W.: 47lbs
BOX SIZE: 13*11*11.8in
