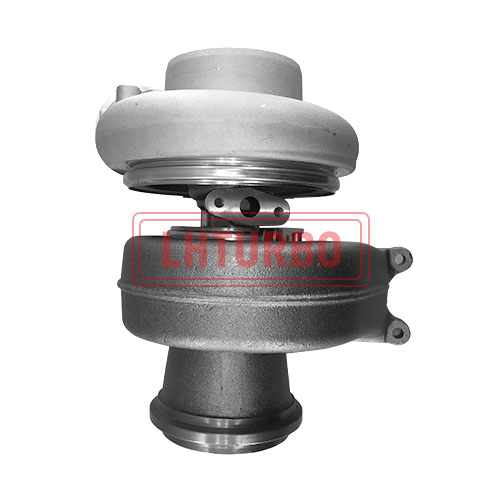

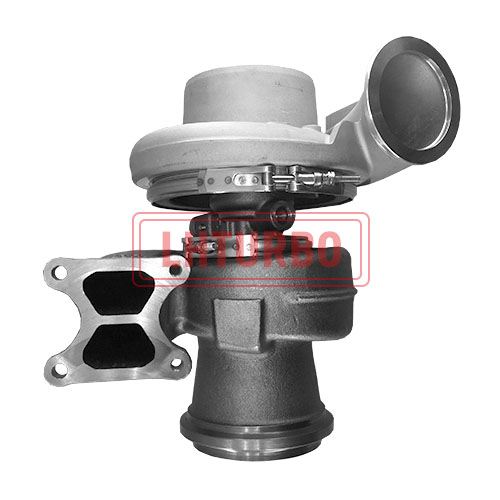

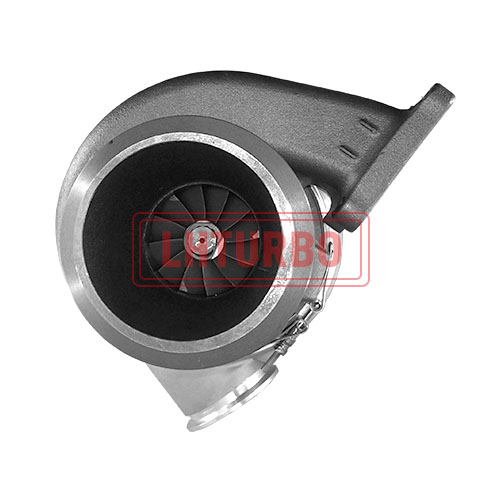

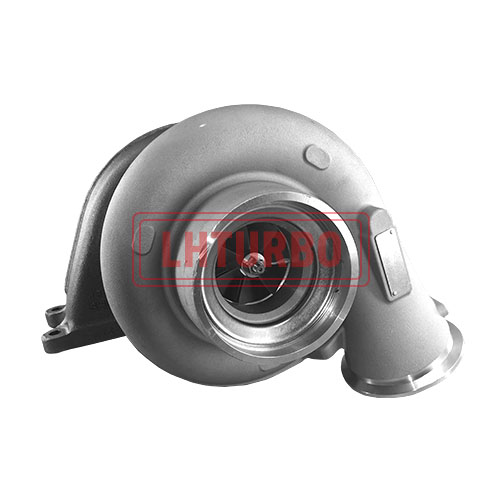

HX55 4036892 Turbo For Cummins ISX1&ISX Signature 450
Product DescriptionSKU# PJ2008
Engine: Cummins ISX1, ISX Signature 450
Turbo Model: HX55
Compressor: 98mm / 69.35mm
Turbine: 85.8mm / 79.6mm
Actuator: Non-Waste Gate
Reference Part Number: 4036892, 4089754, 4036902, 4036900, 4089754, etc.
No core charge, Brand New.
Product Specification:
| Part Number | 4036892 |
| Previous Part Number | 4089754, 4036902, 4036900 |
| OE number | 4089754 |
| Description | Various, Freightliner |
| Manufacturer Part Number | 4036892, 4036900, 4036902, 4089754, 3591788, 3595090, 4089754RX |
| CHRA | 4027807 |
| Turbo Model | HX55-F98K72RU/A86J93PQ33MY, HX55 |
| Engine | ISX1, ISX Signature 450 |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α (compressor housing) | 180 |
| Angle β (turbine housing) | 136 |
| Bearing Housing | 4027776 |
| Turbine Wheel | 3539512 |
| Comp. Wheel | 4036317 |
| Backplate | 3528096 |
| Repair Kit | 3580762 |
| Compressor | Exducer: 98mm, Inducer: 69.35mm, 50 trim,14 blades |
| Turbine | Inducer: 85.8mm, Exducer: 79.6mm, 12 blades |
| Actuator | NON-WASTE GATE |

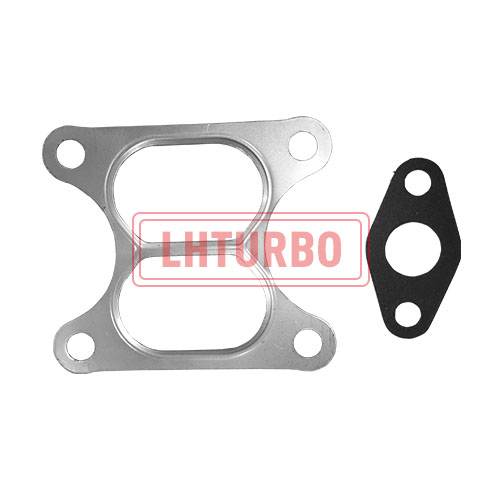

| Gasket Kit | 4026884 |
Applications
2001-12 Cummins Various, Freightliner with Signature 450 Non EGR Engine
Packing way (shipping info)
23KGS 50 LBS
30*37*37
12.8*14.5*14.5
