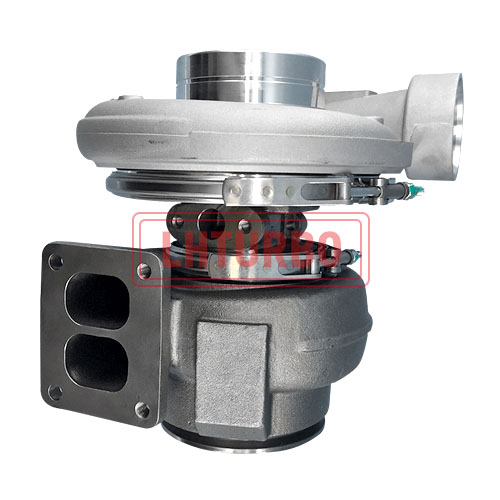

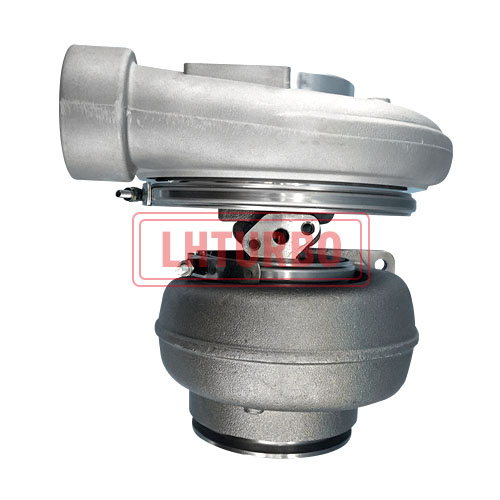

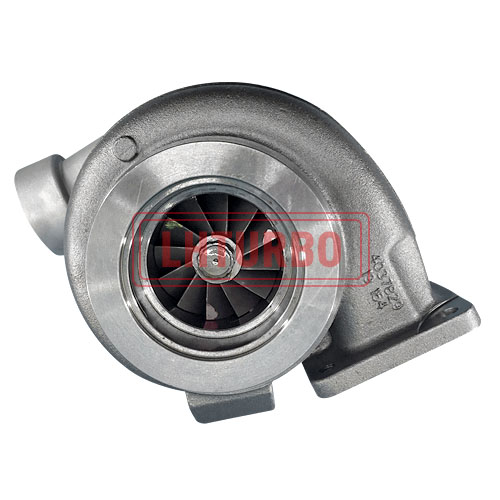

VOLVO TURBO D12D HX52 3599996 TURBOCHARGER
Product DescriptionSKU# PJ2014
Engine: Volvo D12 / D12C
Turbo Model: HX52
Horsepower: 430HP
Compressor Wheel: 67mm
Exhaust Wheel: 70mm
Reference Part Numbers: 3599996, 3598948, 3598947, 3598946, etc
Other part numbers: 20488006, 20516242, 20516147, 85000288, etc.
Product Specification:
| Part Number | 3599996 |
| Previous Version | 3599996D, 3599995, 3599997, 3599998 |
| OE number | 20516242, 20516147, 85000288 |
| Description | Volvo D12D, D12C, Truck Dodge |
| Manufacturer Part Number | 3599996 |
| CHRA | 4032332 |
| Turbo Model | HX52 |
| Engine | D12D, D12C, 6BT, 3599997 |
| Fuel | Gasoline |
| HP | 365/395/435/425 |
| Displacement | 5.9L, 5900 ccm |
| Engine Manufacturer | Volvo |
| Bearing Housing | 3590231 |
| Turbine Wheel | 3592602 |
| Comp. Wheel | 4035468 |
| Backplate | 3528096 |
| Heatshield Number | 3529846 |
| Repair Kit | 3575181/3580762 |
Product Applications
2002- Volvo Truck D12C
2003-04 Dodge Truck 6BT
Packing way (shipping info)
G.W.: 45lbs
BOX SIZE: 14*14*11.8in
