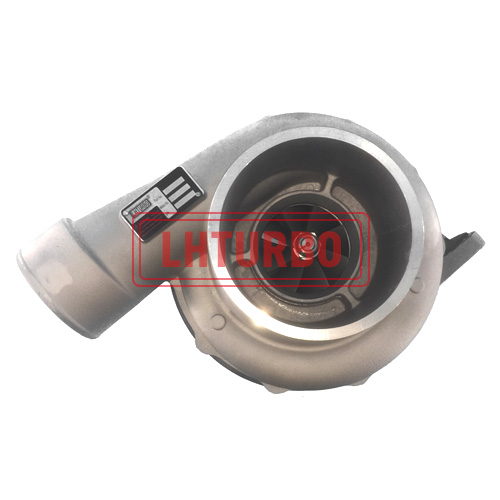

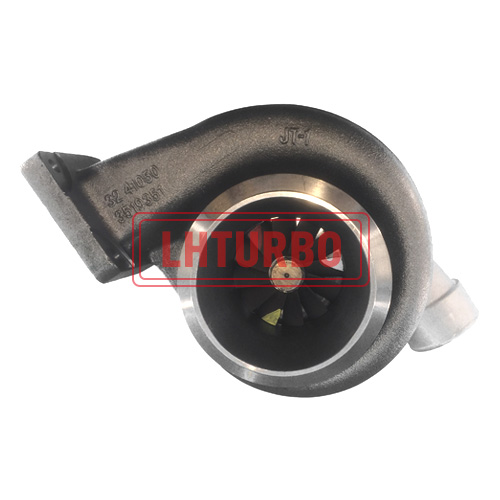

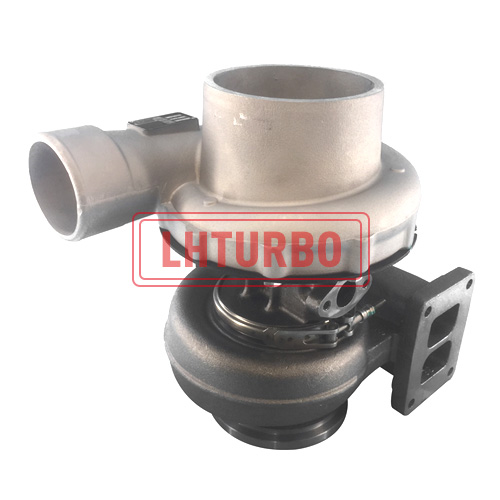

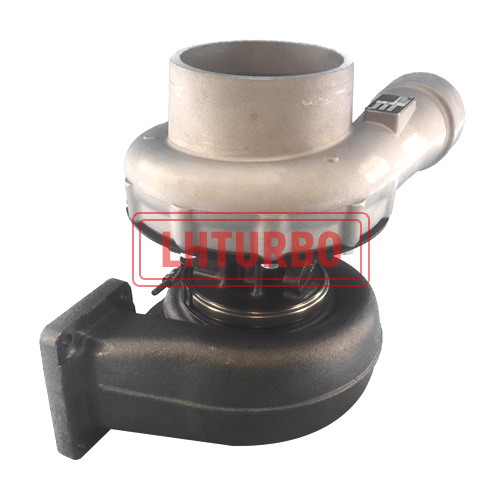

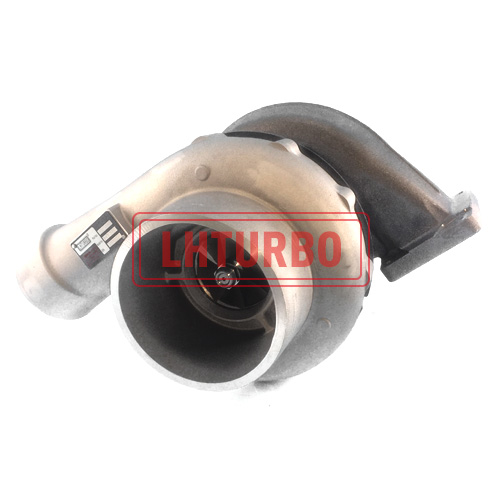

Turbocharger 3523415/196800 For Cummins NTA855 NTC400 NTCC400
Product DescriptionEngine: Cummins NTA855 NTA400 NTC400
Turbo Model: HT3B
Actuator: Non-Waste Gate
Reference Part Number: 3523415，3801598，196800
No core charge, Brand New.
Product Specification:
| Part Number | 3523415 |
| OE number | 3801598, 196800 |
| Year | 1988- |
| Description | Various |
| CHRA | 3811556 (196902) 876.80 |
| Turbo Model | HT3B |
| Displacement | 6.5L |
| Engine | NTA855/NTC400, NTC320 |
| Engine Manufacturer | Cummins |
| Bearing Housing | 196117 |
| Turbine Wheel | 196370 |
| Comp. Wheel | 196893 |
| Back plate | 166084 |
| Heat shield Number | 196342 |
| Repair Kit | 3545669 $73.60 |
| Turbine Housing | 196290 |
| Compressor Cover | |
| Gasket Kit | 215186 |
| Part Number | 3523415 |
| OE number | 3801598, 196800 |
| Year | 1988- |
Applications
1988- Cummins Various with NTA855, NTC400, NTC320 Engine
1986- Cummins Truck with NTC320, NTCC400, NTC400, NTA855 Engine
Packing way (shipping info)
25KGS 53 LBS
30*37*37 12.8*14.5*14.5
